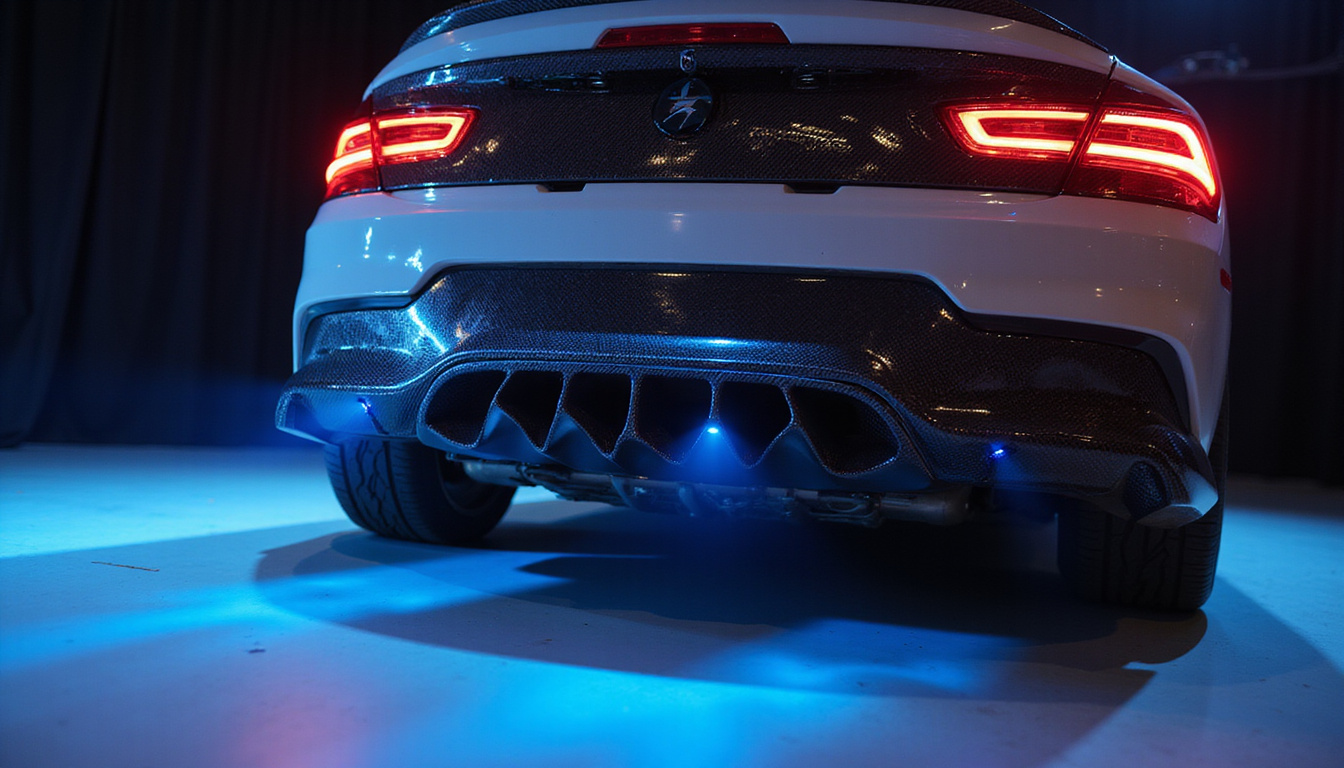

In motorsport and high-performance motorcycles, small aero gains drive big on-track wins. Diffuser design sits central. It turns the underbody into an active aero device. This device stabilizes high-speed handling and boosts downforce without extra drag. At ElectraSpeed, we use CFD to shape flow and CNC for precision. Our engineers convert virtual airflow into billet aluminum and composite parts that bolt onto machines.
Understanding Diffuser Design: From Flow Management to Stability
A diffuser is an underbody or rear section. It shapes air as it expands and slows when leaving the car. Good diffuser design does three things:
- It speeds up airflow beneath the diffuser.
- It smooths the pressure recovery at the exit.
- It makes useful downforce while keeping balance.
Key ideas in diffuser aerodynamics are:
• Pressure differential: The diffuser creates low pressure under the car. This low pressure pulls the car down.
• Expansion ratio: The diffuser opens up at a controlled rate. This control keeps the flow attached and reduces drag.
• Boundary layer control: The thin air layer near surfaces stays in check. This control cuts separation and turbulence, which improves aero efficiency.
At ElectraSpeed, we view diffuser design as both an aero task and a manufacturing task. The shape must fit CFD flow data and meet tight machining tolerances. It must also match the mounting needs on motorcycles or race cars.
The CNC Workflow: From CAD Diffuser Design to CAM to Track-Ready Part
To bring a virtual diffuser into reality, we follow a CAD–CAM–CNC path. Each step sets its own rules and chances.
CAD Modeling: Parametric Diffuser Geometry
Our engineers start with a parametric CAD model. This model lets us change:
• The ramp angle (diffuser angle) from 5° to 15°. We adjust it via CFD until the flow stays attached.
• The channel width and height. These dictate the expansion ratio and mass flow rate.
• The strakes and vanes. They guide the airflow, slow down side flows, and steady the wake.
• The integration features such as mounting tabs and bosses. These features match the design to the bodywork or chassis.
We work in top 3D CAD platforms like Autodesk Fusion 360 or SolidWorks. We use solid and surface modeling to shape 3D curves. We also run material stress and modal analysis. This check makes sure the diffuser withstands real loads and vibration.
CFD-Driven Diffuser Optimization
After we set up the diffuser design, it enters our CFD pipeline. Here’s how we do it:
• Mesh generation: We build a detailed mesh around the diffuser. Boundary layers are refined in key spots.
• Boundary conditions: We set vehicle speed, ride height, yaw angle, and suspension details as found in real track use.
• Solver runs: We mostly use steady-state RANS for speed. We run LES or DES when vortices matter.
• Post-processing: We study pressure, velocity, and vortex details. This study tells us about:
- Downforce (lift coefficient, Cₗ)
- Drag penalty (drag coefficient, C_D)
- Aero balance between the front and rear
- Sensitivity to ride height and pitch
If the design loses attached flow, we change the CAD model and run CFD again. The loop continues until the diffuser meets both performance and production needs.
Material Choices for High-Performance Diffusers: Billet Aluminum to Composites
A diffuser is both an aero element and a structure. Its material must be stiff yet light. It must handle heat and be easy to produce.
Billet Aluminum Diffusers
Billet aluminum (6061-T6 or 7075-T6) is a key material for our diffusers:
• Advantages:
- It machines well for complex 3D shapes.
- It gives high stiffness and better impact resistance than many composites.
- It behaves well under heat and vibration.
- It meets tight machining tolerances so the parts fit perfectly.
• Typical uses:
- Motorcycle hybrid propulsion projects needing parts that integrate with the powertrain.
- Underbody diffusers near heat sources like exhaust systems.
We use finite element stress analysis. This analysis checks that the billet parts can handle curb strikes, debris hits, and high-speed loads.
Carbon Fiber and Hybrid Structures
For very weight-sensitive builds, we design carbon fiber diffusers. They have:
• CNC-machined billet aluminum hardpoints or inserts.
• Mold tooling that comes from our CAD designs and master patterns.
• Layup schedules tuned for bending, twisting, and impact.
Hybrid designs put a composite aero skin on an aluminum frame. This blend gives high stiffness with lower mass. It fits race motorcycles and high-end track builds.
CAM Toolpaths and Machining Strategy: Turning CFD Surfaces into Reality
When the CFD and CAD meet at a final design, the diffuser goes to CAM. Here, toolpaths are made.
3D Surfacing and Toolpath Planning
Diffuser shapes need smooth curves. To preserve the aero intent:
• We use 3D surfacing methods such as scallop, parallel cuts, and morphing between curves.
• Adaptive roughing cuts remove bulk material quickly. They protect against tool load and chatter.
• Finish passes with ball or bull-nose cutters give a low Ra surface. This finish reduces boundary-layer disruption.
For billet aluminum, we set:
• Step-over and step-down to control the scallop height and maintain accuracy.
• Entry and exit strategies to keep witness marks off key areas.
• Machine kinematics (5-axis or 3+2 indexing) to reach deep channels and steep ramp angles safely.
Machining Tolerance and Quality Control
Diffuser performance relies on exact shapes. Tiny shifts may cause flow separation. At ElectraSpeed, we aim for:
• Linear tolerances: ±0.02 mm to ±0.05 mm on key aero surfaces.
• Flatness and profile tolerances via GD&T on the sealing faces and ramps.
• Surface roughness: Ra 0.8–1.6 µm on main flow areas, and a finer finish where critical.
We check these with:
• CMM inspection
• 3D scanning against the CAD model
• Functional tests on chassis fixtures
ElectraSpeed’s Internal Diffuser Design-to-Part Workflow
Our workflow makes each diffuser go from idea to track-ready part. Every run leaves a traceable record of both aero and machining steps.
ElectraSpeed’s diffuser pipeline:
• Concept Definition
- Define vehicle speed, ride height, target downforce, and drag limits.
- Set integration points on the chassis or for hybrid propulsion.
• CAD & Initial Aero Shaping
- Build a parametric model with adjustable ramp angles and strake layouts.
- Check clearances for suspension, exhaust, and rear wheel travel.
• Baseline CFD Assessment
- Run CFD to get a first aero look and spot separation zones.
- Test sensitivity to ride height and pitch.
• Optimization Loop
- Adjust the angles, channel cross-sections, and strake shapes to keep flow attached.
- Run CFD again until the design meets both performance and manufacturing rules.
• Material Selection & Structural Analysis
- Pick between billet aluminum, carbon fiber, or hybrids.
- Run FEA for stress, stiffness, and fatigue under load.
• CAM Programming
- Generate roughing and finishing toolpaths for all key surfaces.
- Simulate cuts to steer clear of collisions and verify the shape.
• CNC Machining & Post-Processing
- Machine the diffuser on 3–5 axis CNC centers with tight controls.
- Deburr, finish the surface, and add coatings or clear coat if needed.
• Inspection & Validation
- Check dimensions and surface quality.
- Fit-test on the vehicle or with jigs.
• On-Track Correlation (Where Applicable)
- Compare driver feedback and logged data with CFD.
- Use real-world data to inform the next design loop.
Hybrid Propulsion Systems and Diffuser Integration for Motorcycles
On motorcycles—especially high-performance or hybrid builds—diffuser design faces extra challenges:
• Limited underbody space
• High sensitivity to aero balance and crosswinds
• Interaction with the rotating rear wheel wake and exhaust plume
In ElectraSpeed’s hybrid propulsion designs for motorcycles, diffusers often:
• Integrate with battery housings or motor mounts in billet aluminum.
• Use CNC channels to route cooling airflow for hybrid parts.
• Feature specific strake designs that steady the wake behind the rear wheel.
Our CFD and high-tolerance machining steps apply. We also focus on:
• Thermal management of hybrid parts.
• Managing noise and vibrations in the mounting zones.
• Durability against road debris and weathering.
Performance Part Prototyping: Rapid Iteration for Diffuser Concepts
For new ideas or chassis changes, performance part prototyping is key.
ElectraSpeed offers:
• Rapid billet prototypes: CNC-machined aluminum parts to test fit and aero response.
• Modular strake systems: Bolt-on strakes and inserts that let you test channel layouts and vortex creation.
• Scaled aero models: Used in wind tunnel tests or small-scale CFD when full-size data is hard to get.
Our process covers:
• One-off prototypes for R&D
• Short runs for race teams needing track-specific variations
• Full production when the design moves from test to proven performance
High-Tolerance Component Engineering for Consistent Aero Performance
Even a perfect CFD diffuser fails if production is variable. ElectraSpeed’s high-tolerance engineering makes sure:
• Aero geometry stays repeatable across runs.
• Fitment is consistent with both spec chassis and aftermarket parts.
• Gaps between the undertray, diffuser, and bodywork remain tight.
We manage:
• Critical datum structures for mounting and alignment.
• GD&T callouts for key aero profiles.
• Assembly stack-ups so chassis variations do not erase aero gains.
This strict engineering makes professional teams and serious enthusiasts trust that each diffuser will match the proven prototype.
FAQs: Engineering-Centric Answers on Diffuser Design and Machining
What CNC tolerances can ElectraSpeed achieve on diffuser parts?
ElectraSpeed holds tolerances of ±0.02–0.05 mm on critical profiles and sealing faces. We reach Ra 0.8–1.6 µm on main flow surfaces, with flatness and profile tolerances defined by GD&T. For very sensitive features, we can tighten these limits after a full review.
Which CAD file formats work with ElectraSpeed’s workflow?
We accept many CAD and neutral files, like:
• STEP, IGES, or Parasolid
• Native files from SolidWorks and Fusion 360
• DXF/DWG files for 2D drawings and GD&T notes
If you have a CFD-validated design, we can import and convert it to our CAM/CNC system.
Can ElectraSpeed handle one-off prototypes and production runs?
Yes. Our process covers:
• Single prototypes for R&D, wind tunnels, or track tests
• Short runs for race teams with strict quality checks
• Scaled production for aftermarket or hybrid diffuser parts
The same CAD–CFD–CAM foundation is used. We adjust fixturing, inspection, and documentation as needed.
Summary
Diffuser design is more than just drawing a ramp and hoping the air behaves. CFD aerodynamics, material science, CAM toolpath planning, and high-tolerance CNC machining all join in this process. ElectraSpeed’s method ties these parts together. The diffuser you bolt onto a motorcycle or race car is not only bold in looks. It is aerodynamically proven, structurally strong, and made with exact precision.
